Ingenico Configuration Menus

Please follow these steps to access the configuration menu in the Ingenico devices.

NOTE* Please do not enter this menu unless you fully understand the ramifications of changing these configurations. All devices come from MyTime pre-configured so there is no reason most customers should adjust these settings.

1. From the MyTime Pay screen press 2634.
   1. Note* if there is no response please try pressing 2634 again OR rebooting your pin-pad by holding Yellow Key + # for 3 seconds and trying again once the pin-pad restarts.
2. You will then see Press F for Menu
   1. Lane/3000 F Key is below the 7
   2. Move/5000 F key is the circle key above the red X
   3. Link/2500 F key is above the red X

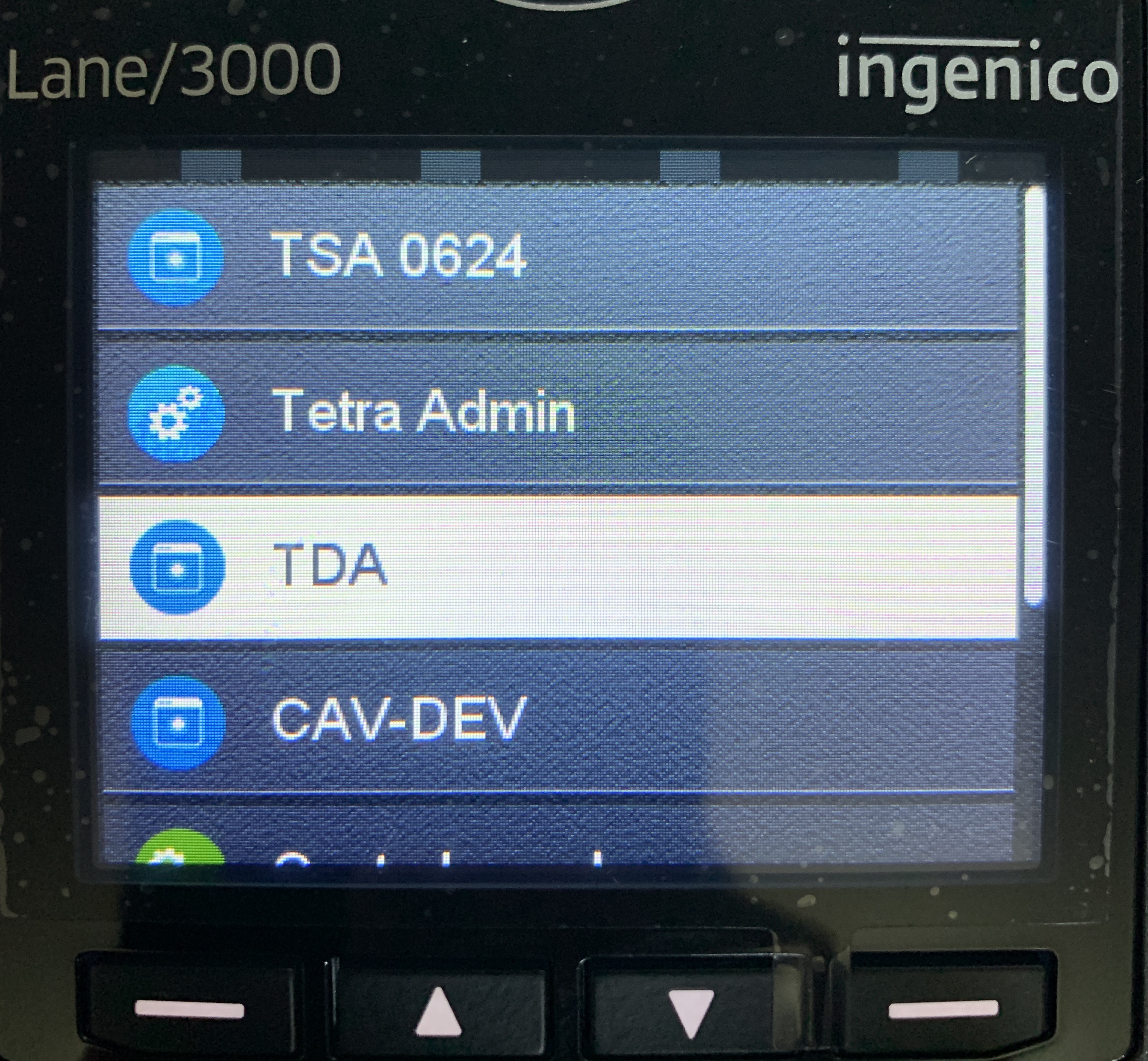

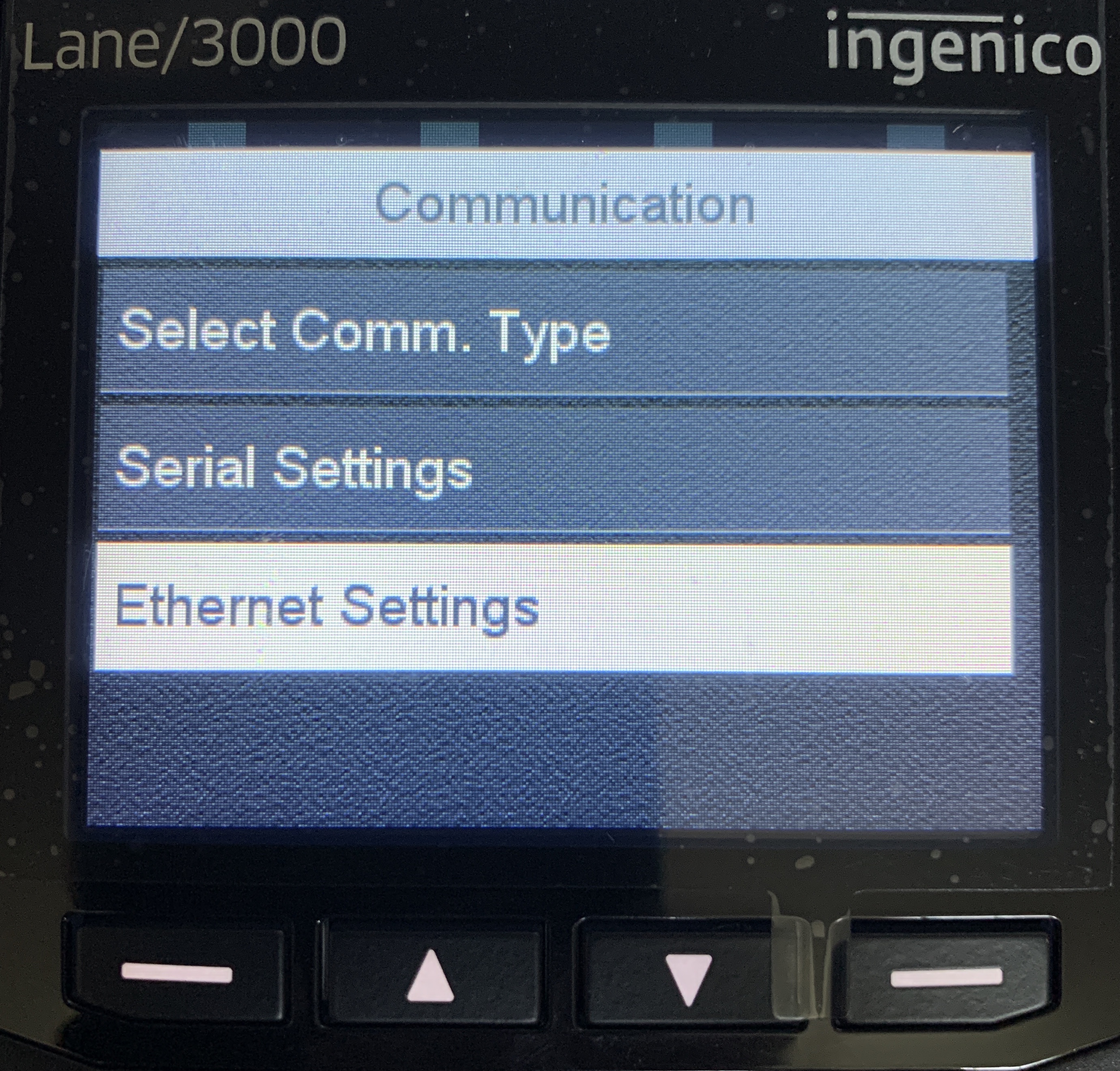

3. Please see the images below to access the corresponding menus. Use the Green key to advance a menu and the Red key to go back a menu.
